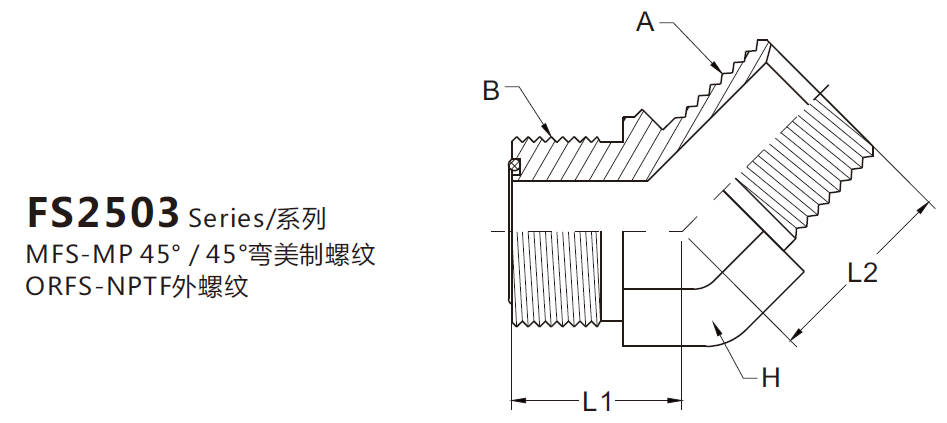

FS2503
型号管径螺纹 THREAD长度 LEN.对边HEXPART NO.TUBE.OD.B1B2L1L2HFS2503-04-021/49/16-181/8-270.6300.6709/16FS2503-04-041/49/16-181/4-180.630
型号管径螺纹 THREAD长度 LEN.对边HEXPART NO.TUBE.OD.B1B2L1L2HFS2503-04-021/49/16-181/8-270.6300.6709/16FS2503-04-041/49/16-181/4-180.630
| 型号 | 管径 | 螺纹 THREAD | 长度 LEN. | 对边HEX | ||
| PART NO. | TUBE.OD. | B1 | A NPTF | L1 | L2 | H |
| FS2503-04-04 | 1/4 | 9/16-18 | 1/4-18 | 0.63 | 0.86 | 9/16 |
| FS2503-04-06 | 1/4 | 9/16-18 | 3/8-18 | 0.68 | 0.95 | 3/4 |
| FS2503-06-04 | 3/8 | 11/16-16 | 1/4-18 | 0.74 | 0.95 | 3/4 |
| FS2503-06-06 | 3/8 | 11/16-16 | 3/8-18 | 0.74 | 0.95 | 3/4 |
| FS2503-06-08 | 3/8 | 11/16-16 | 1/2-14 | 0.8 | 1.17 | 7/8 |
| FS2503-08-04 | 1/2 | 13/16-16 | 1/4-18 | 0.8 | 0.95 | 3/4 |
| FS2503-08-06 | 1/2 | 13/16-16 | 3/8-18 | 0.8 | 0.95 | 3/4 |
| FS2503-08-08 | 1/2 | 13/16-16 | 1/2-14 | 0.8 | 1.17 | 7/8 |
| FS2503-08-12 | 1/2 | 13/16-16 | 3/4-14 | 0.82 | 1.2 | 1-1/16 |
| FS2503-10-08 | 5/8 | 1-14 | 1/2-14 | 0.92 | 1.17 | 1-1/16 |
| FS2503-12-08 | 3/4 | 1-3/16-12 | 1/2-14 | 1.02 | 1.3 | 1-3/16 |
| FS2503-12-12 | 3/4 | 1-3/16-12 | 3/4-14 | 1.02 | 1.3 | 1-3/16 |
| FS2503-16-16 | 1 | 1-7/16-12 | 1-11-1/2 | 1.18 | 1.56 | 1-7/16 |
| FS2503-20-20 | 1-1-/4 | 1-11/16-12 | 1-1/4-11-1/2 | 1.26 | 1.67 | 1-5/8 |
