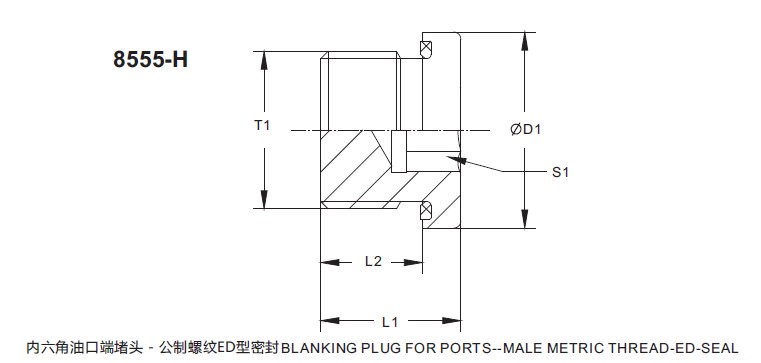

8555-H
8555-H08-OM8x11212.383408555-H10-OM10x11412.385408555-H12-OM12x1.51717.3126408555-H14-OM14x1.51917.3126408555-H16-OM16x1.5221
8555-H08-OM8x11212.383408555-H10-OM10x11412.385408555-H12-OM12x1.51717.3126408555-H14-OM14x1.51917.3126408555-H16-OM16x1.5221
| 型号 | 公制直螺纹 | 尺寸 | Sizes | 工作压力 | ||
| Part Nr. | Metric Straight Thread | Sizes | 尺寸 | WkPressure | ||
| T1 | D1 | L1 | L2 | S1 | Mpa | |
| 8555-H08-O | M8x1 | 12 | 12.3 | 8 | 3 | 40 |
| 8555-H10-O | M10x1 | 14 | 12.3 | 8 | 5 | 40 |
| 8555-H12-O | M12x1.5 | 17 | 17.3 | 12 | 6 | 40 |
| 8555-H14-O | M14x1.5 | 19 | 17.3 | 12 | 6 | 40 |
| 8555-H16-O | M16x1.5 | 22 | 17.3 | 12 | 8 | 40 |
| 8555-H18-O | M18x1.5 | 24 | 17.3 | 12 | 8 | 40 |
| 8555-H20-O | M20x1.5 | 26 | 19.3 | 14 | 10 | 40 |
| 8555-H22-O | M22x1.5 | 27 | 19.3 | 14 | 10 | 40 |
| 8555-H26-O | M26x1.5 | 32 | 21.3 | 16 | 12 | 40 |
| 8555-H27-O | M27x2 | 32 | 21.3 | 16 | 12 | 40 |
| 8555-H33-O | M33x2 | 40 | 22.8 | 16 | 17 | 40 |
| 8555-H42-O | M42x2 | 50 | 22.8 | 16 | 22 | 31.5 |
| 8555-H48-O | M48x2 | 55 | 22.8 | 16 | 24 | 31.5 |
